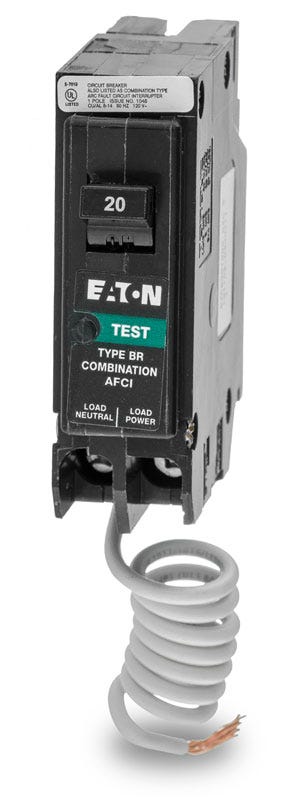

Eaton/Cutler-Hammer BRN120AF 1 Pole Circuit Breaker
The New Eaton BRN120AF Type BR Combo AFCI 20 Amp Circuit Breaker is a 1-pole combination AFCI (Arc Fault Circuit Interrupter) breaker that provides direct detection of persistent low current arcing faults down to 5 amps with associated mitigation of fire hazards in the cords connected to the outlets. This miniature breaker rated at 15-amp and 120/240Vac has an interrupt rating of 10kA. Featuring a plug-on mount it can be used with plug-on neutral panels & existing old panels. Parallel arcing faults can occur from line to neutral or line to ground. These arcing faults are in parallel with the load and produce the most energy of all arcing faults. The load limits the current level of low-current arcing faults. It is ideal for indoor mounting.
Specifications
Brand
Eaton/Cutler-Hammer
Series
BR
Amperage
15
Voltage
120 VAC
Poles
1
Mounting Type
Pigtail
Interrupting Rating
10kA
Terminal Connection
Plug-on
Length (in)
12.5
Width (in)
6
Height (in)
35
Voltage Protection Rating
240V
Upc
786689040895
Gtin
786689040895
